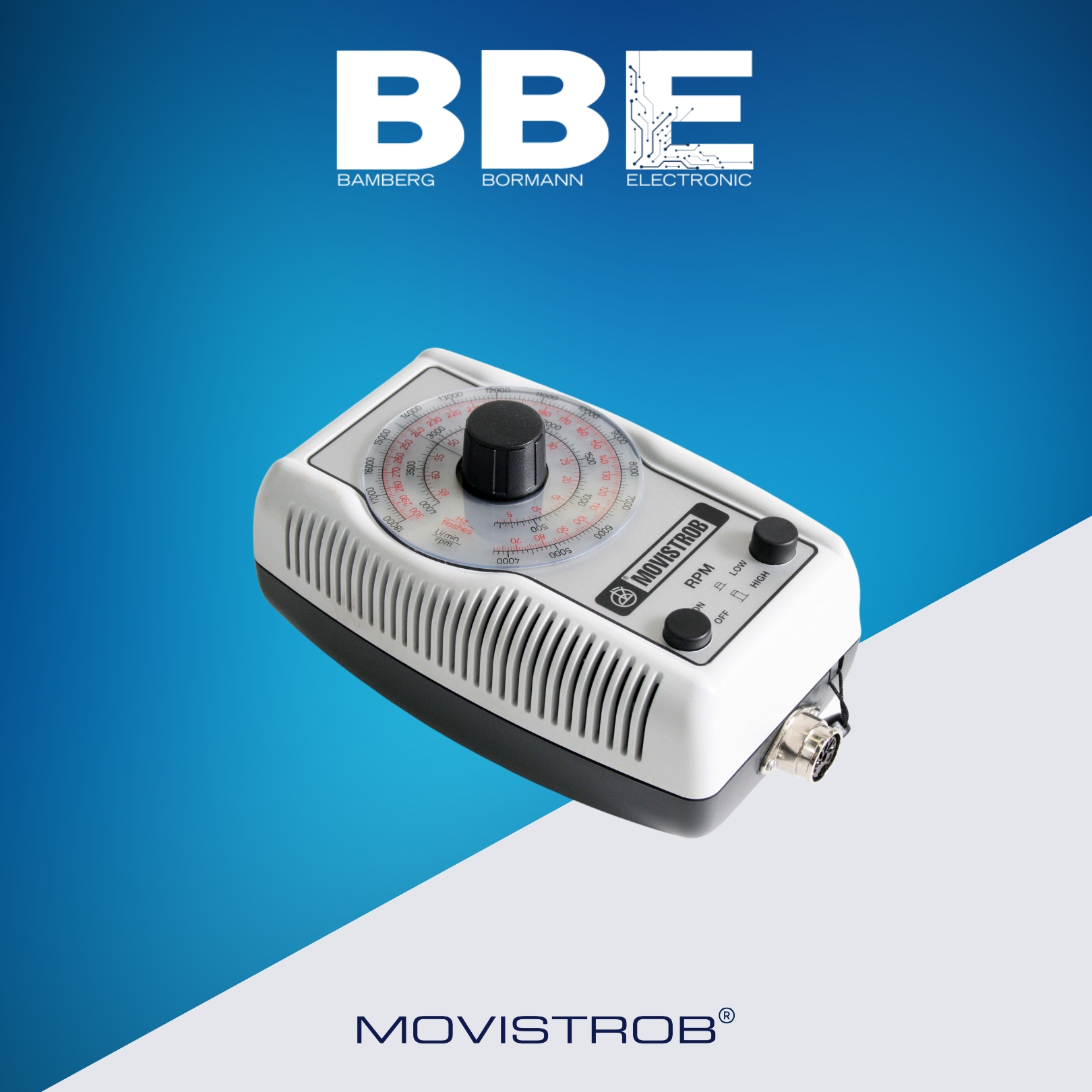

MOVISTROB 3000 B/A 12V DC
704,94 €
excl. 19% VAT zzgl. Versandkosten
The Industrial Stroboscope 3000 B/A (12V DC) is a compact, processor-controlled handheld stroboscope designed for professional motion analysis, speed measurement and visual inspection of rotating or fast-moving components.
Its internal xenon long-life flash tube delivers short flash durations, allowing sharp freeze-frame visualization even at high rotational speeds. With a frequency range from 2.5 to 300 Hz (150 to 18,000 RPM), the stroboscope covers a wide spectrum of industrial applications.
Frequency adjustment is performed via a rotary pulse encoder, providing precise fine tuning and intuitive operation. The integrated automatic range switching and power adjustment ensure consistent light output and measurement accuracy across the full operating range.
Thanks to its ergonomic industrial housing, low weight and 12V DC battery operation, the stroboscope is ideally suited for mobile inspection tasks, maintenance work and on-site diagnostics. Optional accessories allow extended brightness or frequency ranges on request.
Movistrob® is referenced solely as the product series name; the primary application remains industrial stroboscope technology.
Product inquiry
MOVISTROB 3000 B/A 12V DC
| Light source: | Internal xenon flash tube |
| Flash tube: | Xenon-Longlife, plug-in, Typ MS 2000, Art.Nr.: B10619 |
| Light intensity: | max. 450 Lux at 50 cm reflector distance (optical axis) |
| Flash duration: | Approx. 2 - 7µs |
| Frequency range: | 2,5 - 300Hz = 150 - 18.000 RPM (min-1)
Divided into two overlapping ranges: |
| Triggering: | Internal |
| Control: | Rotary pulse encoder with fine adjustment |
| Accuracy: | < 0,02% of the set value ( f / Hz ) (quartz-based) |
| Power adjustment / range switching: | automatisch |
| Operating voltage: | 12V DC, 1,7A |
| Housing: |
Ergonomic industrial design, impact-resistant plastic, VDE compliant |
| Dimensions: | 155 x 95 x 85 mm |
| Weight: | Approx. 0,450 kg |
| Notes: | Optional battery pack available. On request, the device can be supplied with increased light intensity (up to 600 lux) or extended frequency range (up to 30,000 RPM). Internal triggering without standby (continuous operation) available on request. Custom configurations available. |
Additional information
| Weight | 0,6 kg |
|---|---|
| Dimensions | 15,5 × 9,5 × 8,5 cm |
