MOVISTROB 3000 N/A 230V AC

595,19

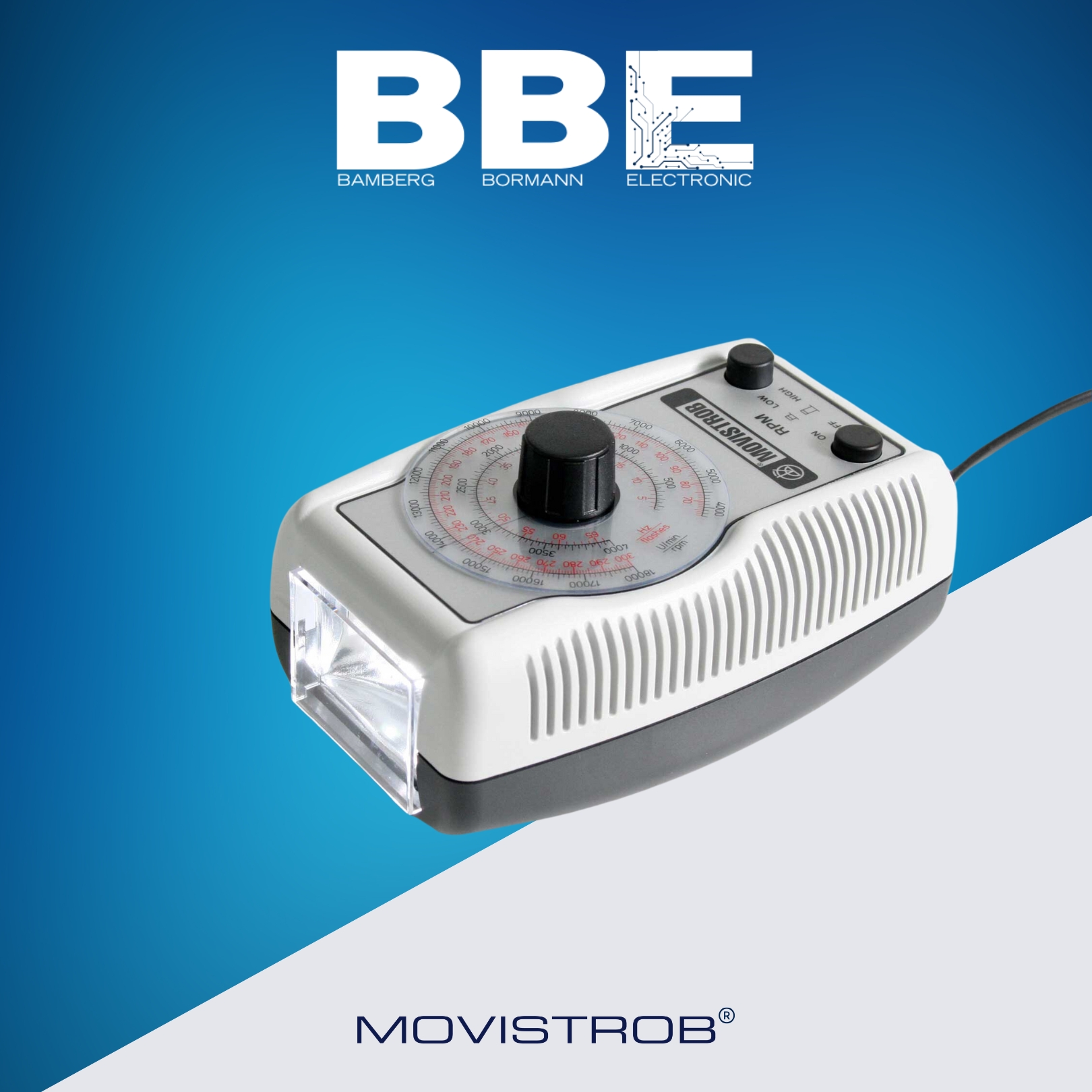

The MOVISTROB 3000 N/A 230V AC is a compact, processor-controlled handheld stroboscope designed for reliable industrial use with direct mains power supply. The device combines robust industrial design with precise analog frequency adjustment via a clearly readable scale.

Thanks to its quartz-stabilized frequency generator, the MOVISTROB 3000 N/A offers high accuracy and temperature-stable operation. The ergonomic housing allows comfortable one-handed operation, while the internal xenon long-life flash tube ensures consistent illumination performance over long operating periods.

This model is especially suitable for applications where continuous operation, simple handling and dependable frequency accuracy are required.

Product inquiry

MOVISTROB 3000 N/A 230V AC

2 + 13 =

Light source: Internal flash tube
Flash tube: Xenon long-life, plug-in type MS 2000 (Art. No. B10619)
Light intensity: max. 450 lux at 50 cm distance from reflector (optical axis)
Flash duration: Approx. 2 - 7µs
Frequency range:

2.5 – 300 Hz = 150 – 18,000 RPM
Divided into two overlapping ranges:

    • 2.5 – 66.6 Hz = 150 – 4,000 RPM

    • 61.6 – 300 Hz = 3,700 – 18,000 RPM

Triggering: internal
- Internal control: Via scale potentiometer
Display: Hz and RPM (min⁻¹) via parallax-free readable scale
Accuracy: ±2% of the set value
Power adjustment / range switching: Via frequency range selection push button
Operating voltage: 230V - 250V AC, 50-60 Hz
Housing: Ergonomic industrial design, impact-resistant plastic, VDE compliant
Dimensions: 155 x 95 x 85 mm
Weight: Approx. 0,6 kg

Additional information

Weight 0,6 kg
Dimensions 15,5 × 9,5 × 8,5 cm
