MOVISTROB 3000 N/D 230V AC

761,73

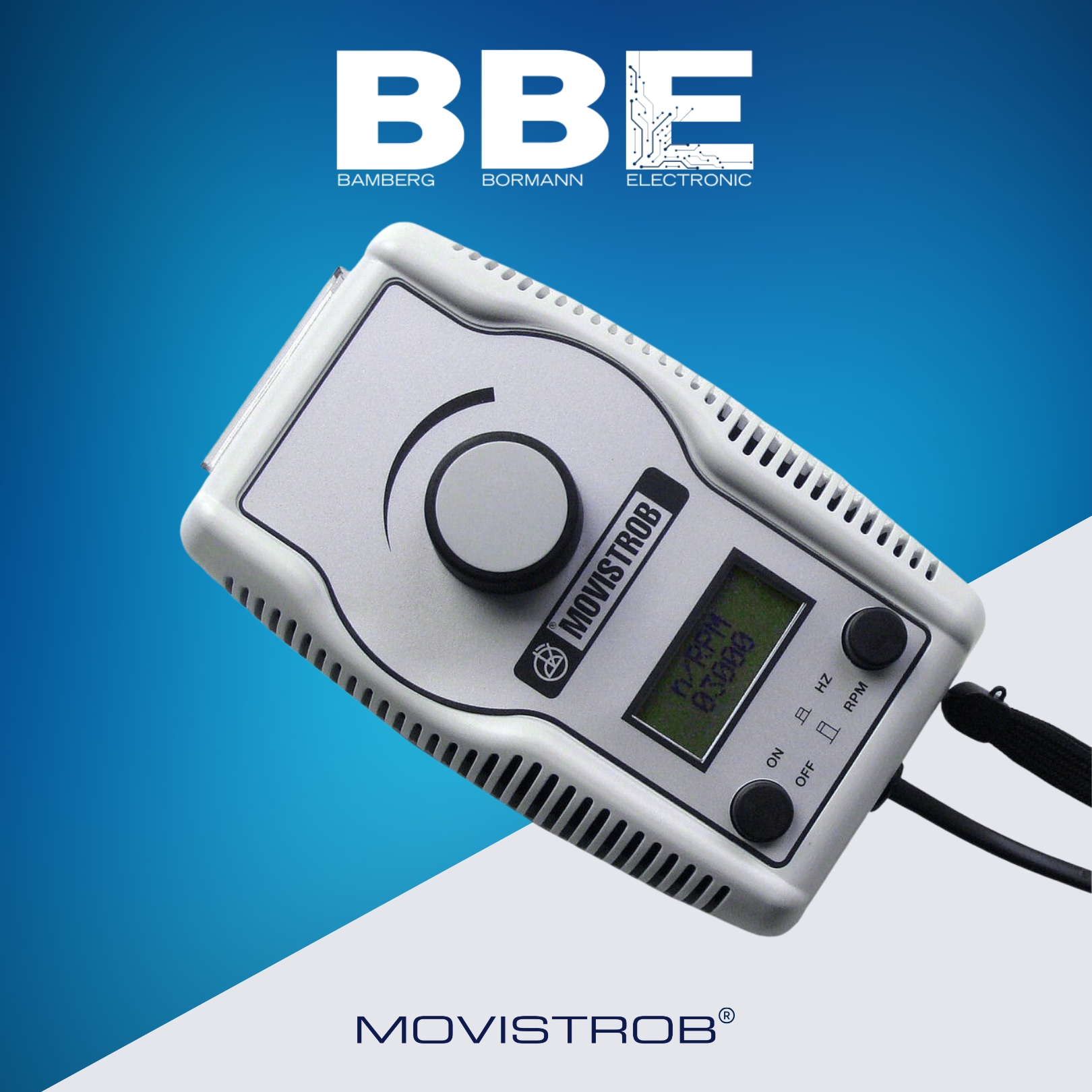

The Industrial Stroboscope 3000 N/D (230V AC) is a compact, processor-controlled stroboscope designed for professional inspection, motion analysis and rotational speed monitoring in industrial environments.

Thanks to its high-precision frequency control and digital display, the stroboscope enables reliable visualization of fast-moving or rotating objects. The integrated xenon long-life flash tube ensures short flash durations, producing sharp, freeze-frame images even at high rotational speeds.

With a frequency range of 0.5 to 335 Hz, corresponding to 30 to 20,100 RPM, the device covers a wide range of industrial applications. Automatic flash power adjustment ensures consistent light output across the entire operating range.

The ergonomic industrial housing, combined with low weight and compact dimensions, allows both stationary use and mobile inspection tasks. The 230V AC power supply ensures continuous, maintenance-free operation without batteries.

MOVISTROB® is referenced solely as the product series name; the primary focus remains industrial stroboscope technology.

Product inquiry

MOVISTROB 3000 N/D 230V AC

13 + 2 =

Light source:

Internal xenon flash tube

Flash tube:

Xenon long-life, plug-in type MS 2000

Light intensity:

max. 450 lux at 50 cm reflector distance (optical axis)

Flash duration: Approx. 2 - 7µs
Frequency range: 0.5 – 335 Hz (= 30 – 20,100 RPM)
with automatic power adjustment
Triggering: internal
- Internal control: Rotary encoder control, push-&-turn cursor function, standby mode with data-hold function (after 5 minutes), storage of last set value
Display:

LC display, 2 × 8 characters, switchable between Hz and RPM

Memory:

Last set value

Accuracy:

< 0.02% of set value (f / Hz), quartz-controlled

Power adjustment / range switching Automatic
Operating voltage: 230V - 250V AC, 50-60 Hz
Housing:

Ergonomic industrial design, impact-resistant plastic, VDE compliant

Dimensions: 155 x 95 x 85 mm
Weight: Approx. 0,6 kg
Note: Optional versions with increased light intensity (up to max. 600 lux) or extended frequency range (up to 30,000 RPM) available on request.
Internal triggering without standby (continuous operation) available on request.
Custom versions available.

Additional information

Weight 0,6 kg
Dimensions 15,5 × 9,5 × 8,5 cm
